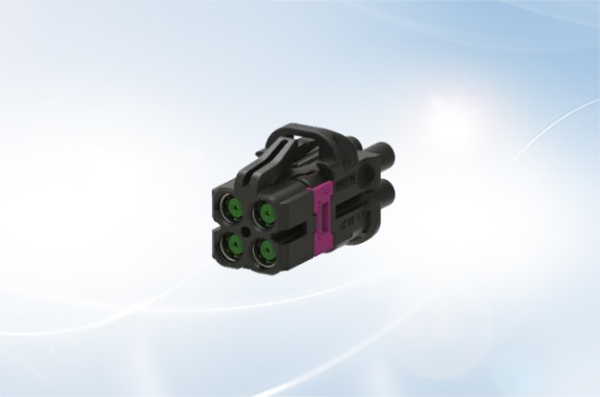

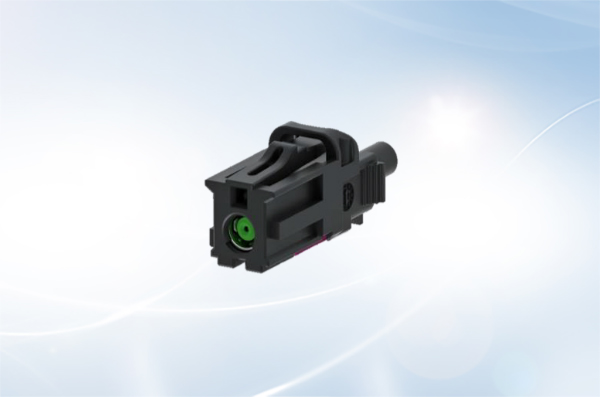

Mini-FAKRA

  • Low loss RF performance to 15 GHz
  • Excellent for next generation high bandwidth applications
  • Automated cable termination
  • Robust TPA and optional CPA functionality
  • Fully compatible with HFM®

- Mating Interface

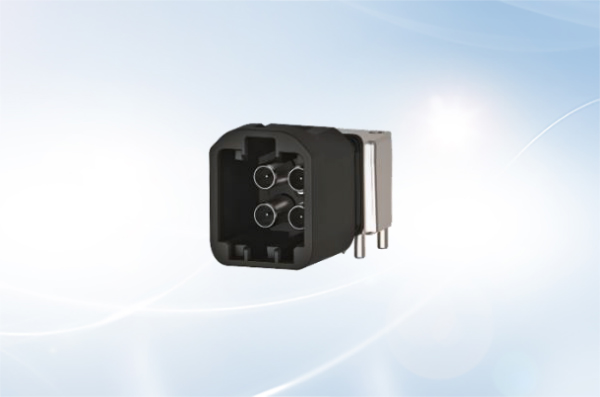

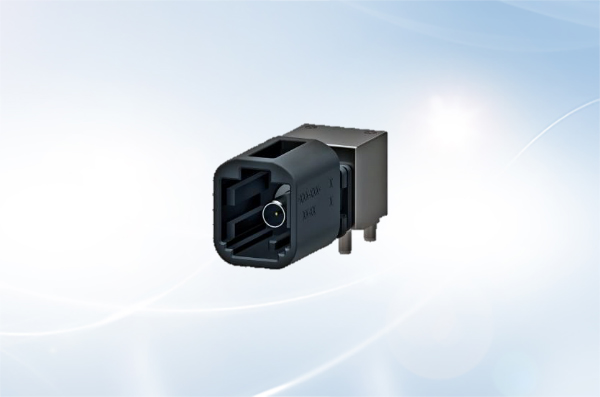

- PCB Launch

- Interchangeable plastic housing

Lowest mating force in the industry

  • <45N for 4 port connector

Product Launch Schedule

  • PCB samples available now (4-Port)
  • Production samples available Q3 2019
  • Targeting production shipments Q4 2019
  • Cable side in final development, samples Q3 2019
  • Launch cable is TFC 302 LL and equivalent

Full product line will include 1, 2, 4, 5 ports with rollout planned in 2019



Mini-FAKRA

  • High density automotive interconnect
  • Excellent RF performance to 15 GHz
  • High bandwidth applications up to 20 Gbps
  • Automated cable termination

Key applications

  • Autonomous Vehicle Control Units
  • High Bandwidth Cameras
  • Connected car – V2X
  • High bandwidth displays and infotainment

Two supported standards globally

  • Type A
  • Type B
  • Supports both standards as needed by OEM’s
